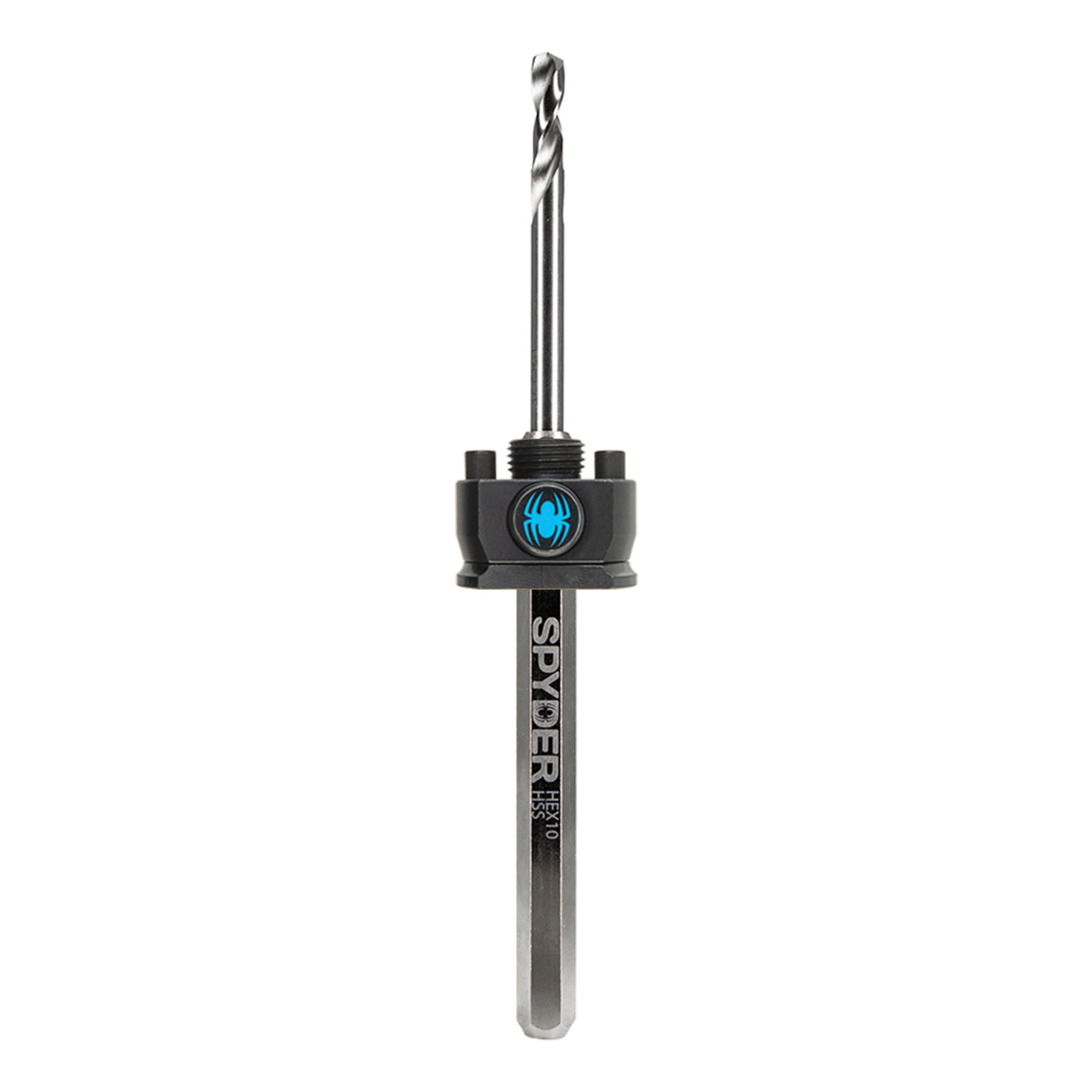

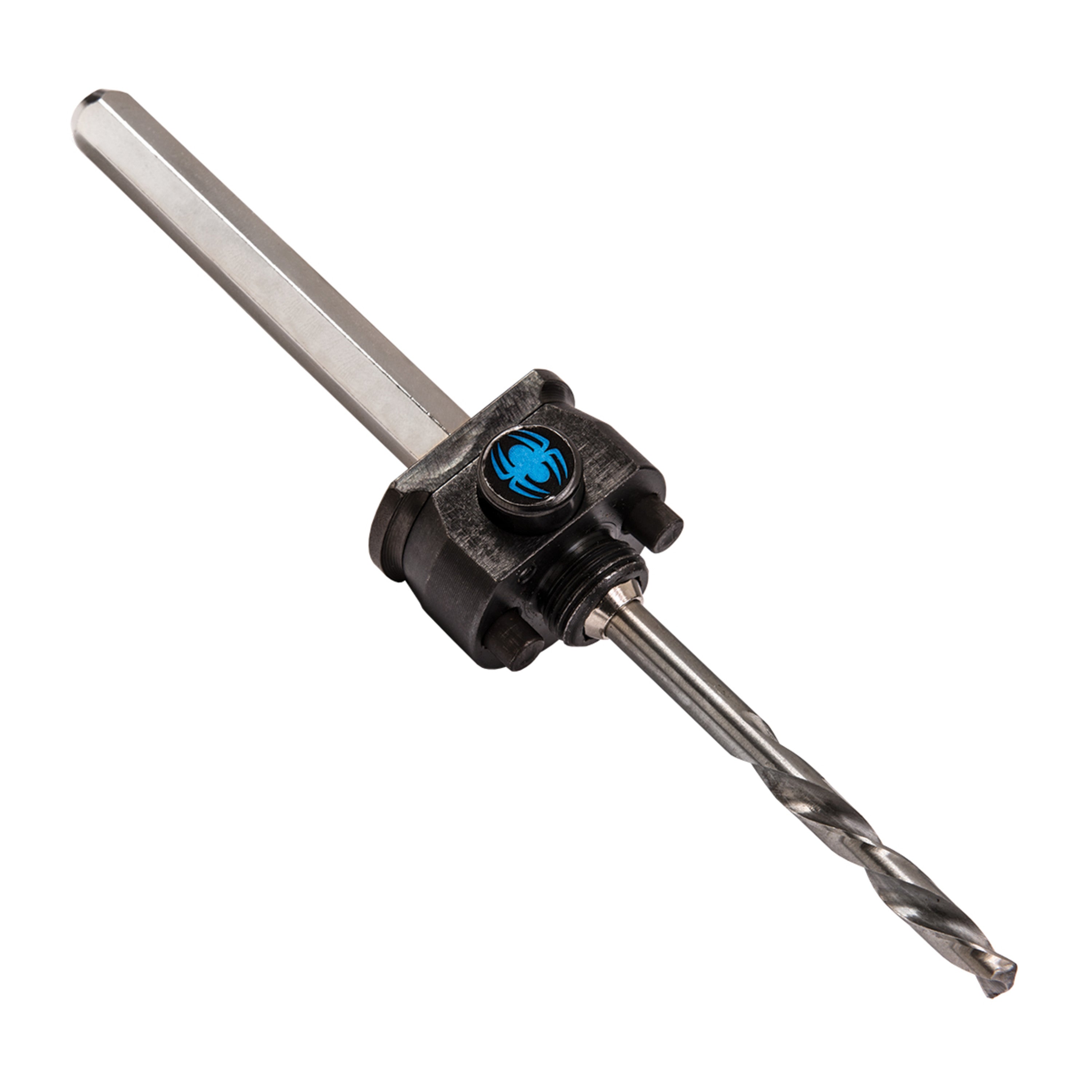

Hex10 1/2" HSS Quick Change Hole Saw Arbor Assembly Rapid Core Eject™

Hex10 1/2" HSS Quick Change Hole Saw Arbor Assembly Rapid Core Eject™

SKU: 600634P

Hex10 arbor — 1/2-in hex, 5/8″-18 thread
Rapid Core Eject Arbor System allows users to quickly eject cores, change the diameter, cut at an angle, or enlarge existing holes
High Speed Steel (HSS) Hex10 Pilot Bits for use on Wood and Metal

Product Details

Use Spyder’s Rapid Core Eject™ arbor system to remove cores without prying – drill hole, press button, pull back the hole saw, and eject the core – up to 5x faster than standard hole saw arbors. Cut at an angle, and use two adapters (second adapter sold separately) on one pilot bit to enlarge existing holes.

Why Choose Spyder Rapid Core Eject™

Hex10 arbor — 1/2-in hex, 5/8″-18 thread

Rapid Core Eject Arbor System allows users to quickly eject cores, change the diameter, cut at an angle, or enlarge existing holes

High Speed Steel (HSS) Hex10 Pilot Bits for use on Wood and Metal

Hex10 Arbor designed for 1/2" drill chucks

Spin on, spin off saw mounting

Always drill using a drill motor that is equipped with a support handle

For use in standard rotary drilling mode — not for use in hammer or impacting drill modes

To reduce the risk of injury:

Read the instruction manual and follow the safety regulations of the power tool you will be using with your Spyder accessory.

Use personal protective equipment. Always wear eye protection.

Protective equipment such as a dust mask, non-skid safety shoes, protective apparel and hearing protection should be used in appropriate conditions to reduce the risk of personal injury.

WARNING:

Operating the tool without wearing proper protection may result in serious injury.

Do not use near flammable materials or gases!

To reduce the risk of explosion, electric shock, and property damage, always check the work area for hidden gas pipes, electrical wires, and water pipes when making blind and/or plunge cuts.

Before each use:

Check that the hole saw is free from damage and excessive wear. Discard hole saw if damage is noticed or suspected as this can cause excessive friction, saw binding, kickback, create dangerous flying debris and/or create other unsafe situations that may cause injury.

Use a pilot bit which is correctly sized for the hole saw being used.

Hex-based pilot bits are intended to be used with hex-based arbor adapters and hole saws. Use a pilot bit which is correctly sized for the hole saw being used. Always be sure that the pilot bit extends
beyond the cutting edge of the saw by at least ¼”; for deep cut hole saws, the pilot bitshould extend at least 1” beyond the cutting edge of the saw.

WARNING: Hole saws are not to be used in hammer or impact mode!

Only drill in standard rotary drilling mode. Drilling in hammer or impact mode can cause the hole saw to become damaged/broken and can increase the likelihood of user injury due to dangerous flying debris or other unsafe situations.
For TCT saws recommended for use on concrete products, brick, or tile materials, check the Mohs hardness of the material to be drilled. Materials like poured concrete, some brick/block, floor tile, ceramic tile, porcelain, and others, may have a Mohs hardness of higher than 6. The TCT hole saw is not recommended for use in materials with a Mohs hardness of higher than 6.

To reduce the risk of injury:

Read the Spyder Hole Saw RPM Chart for the recommended operating speed for the saw size and the material being cut.
Use the proper pilot bit and hole saw for your material. Only drill materials that are listed on the product label.
Use a drill motor that is equipped with a support handle.
Start cutting with a light forward pressure. For cuts that are square to the surface, start the cutting process with the saw square to the material being cutso all teeth begin to cut at the same time. This will help prevent premature wear and damage to the saw. Feeding the saw in and out or using a slight circular rocking motion may assist in clearing material shavings from the hole being cut. When sawing in wood, finish the hole from the opposite side to prevent splintering. Once the pilot bit has broken through the other side, you can use this hole to guarantee you are in line with where you have already started cutting.

Included in Set

Hex10 1/2" HSS Quick Change Hole Saw Arbor Pilot Bit Rapid Core Eject™

SKU: 600645P

Hex10 1/2" Quick Change Hole Saw Arbor Rapid Core Eject™

SKU: 600869P

Hex10 1/2" HSS Quick Change Hole Saw Arbor Assembly Rapid Core Eject™
