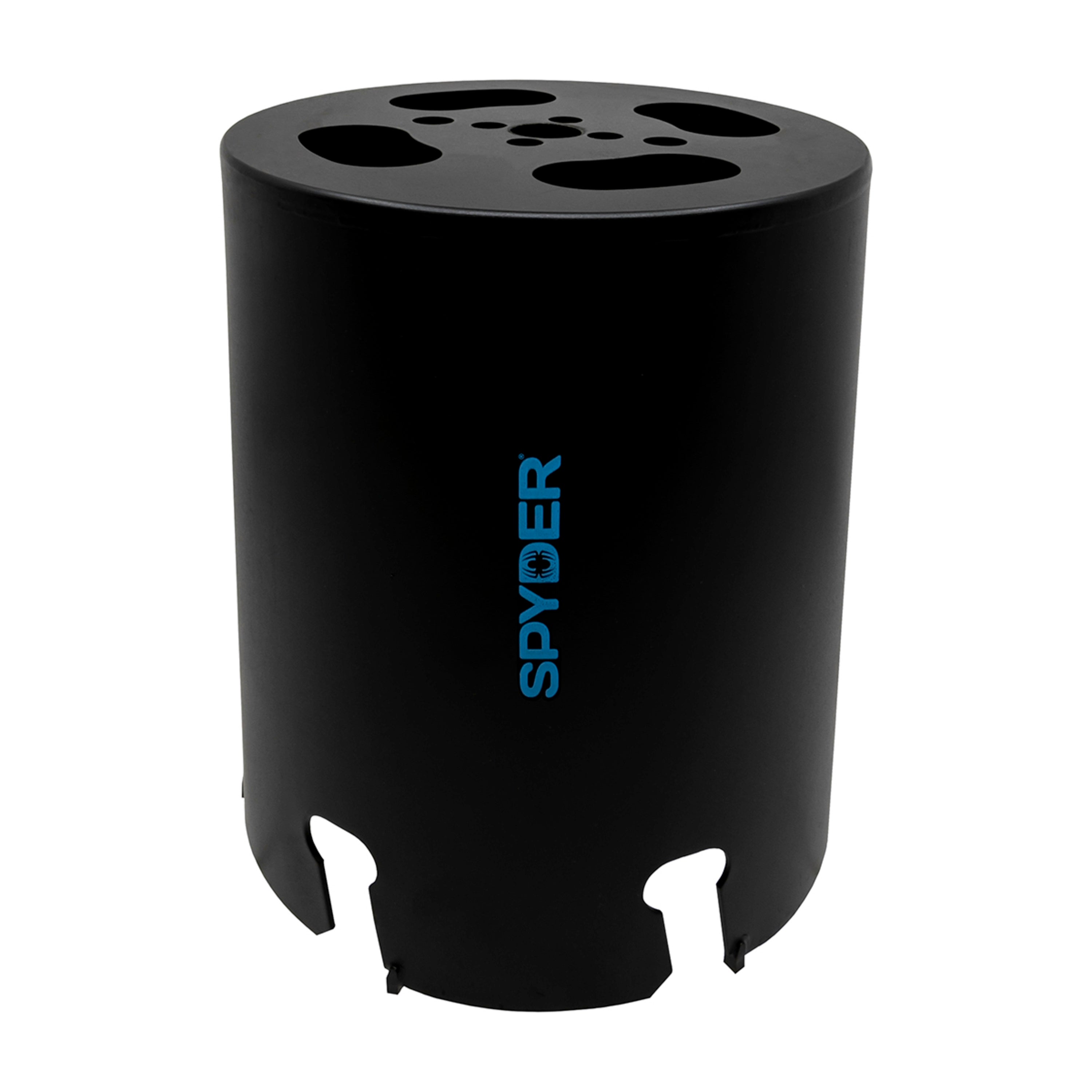

5-1/4" Deep Cut Tungsten Carbide Tipped Hole Saw

5-1/4" Deep Cut Tungsten Carbide Tipped Hole Saw

SKU: 600837

Up to 10x more cuts than standard bi-metal hole saws
6-1/4-In depth of cut
Drill wood, fiber cement board, porous concrete block, brick, ceramic wall tile, plastic/PVC and more

Product Details

Spyder’s Tungsten Carbide Tipped (TCT) hole saws cut more materials, last longer, and cut deeper than conventional bi-metal saws. TCT hole saws cut wood, concrete block, brick, fiber cement board, ceramic wall tile, PVC, and more (with a Mohs hardness of less than 6). This extended cutting depth makes Spyder’s Deep Cut hole saws excellent for stacked materials, deeper cuts, and for drilling through brick and concrete block. NOTE: Spyder Deep Cut TCT hole saws use Hex11 arbors/pilots which do not feature Rapid Core Eject™ technology; they cannot cut at an angle or enlarge existing holes. For use in standard rotary drills. Do not use in hammer drill mode. Not recommended for harder, abrasive materials.

Why Choose Spyder

Up to 10x more cuts than standard bi-metal hole saws

6-1/4-In depth of cut

Drill wood, fiber cement board, porous concrete block, brick, ceramic wall tile, plastic/PVC and more

Universal 5/8-18 thread uses Spyder Hex11 arbor/pilot bits

Tungsten carbide tipped for extended life, clean cuts and extreme material drilling versatility

Always use a drill motor with a support handle

Not for use on metal, wood with nails, or in block/brick/tile applications with a Mohs hardness of 6 or greater

Not for use in hammer mode

To reduce the risk of injury:

Read the instruction manual and follow the safety regulations of the power tool you will be using with your Spyder accessory.

Use personal protective equipment. Always wear eye protection.

Protective equipment such as a dust mask, non-skid safety shoes, protective apparel and hearing protection should be used in appropriate conditions to reduce the risk of personal injury.

WARNING:

Operating the tool without wearing proper protection may result in serious injury.

Do not use near flammable materials or gases!

To reduce the risk of explosion, electric shock, and property damage, always check the work area for hidden gas pipes, electrical wires, and water pipes when making blind and/or plunge cuts.

Before each use:

Check that the hole saw is free from damage and excessive wear. Discard hole saw if damage is noticed or suspected as this can cause excessive friction, saw binding, kickback, create dangerous flying debris and/or create other unsafe situations that may cause injury.

Use a pilot bit which is correctly sized for the hole saw being used.

Hex-based pilot bits are intended to be used with hex-based arbor adapters and hole saws. Use a pilot bit which is correctly sized for the hole saw being used. Always be sure that the pilot bit extends
beyond the cutting edge of the saw by at least ¼”; for deep cut hole saws, the pilot bitshould extend at least 1” beyond the cutting edge of the saw.

WARNING: Hole saws are not to be used in hammer or impact mode!

Only drill in standard rotary drilling mode. Drilling in hammer or impact mode can cause the hole saw to become damaged/broken and can increase the likelihood of user injury due to dangerous flying debris or other unsafe situations.
For TCT saws recommended for use on concrete products, brick, or tile materials, check the Mohs hardness of the material to be drilled. Materials like poured concrete, some brick/block, floor tile, ceramic tile, porcelain, and others, may have a Mohs hardness of higher than 6. The TCT hole saw is not recommended for use in materials with a Mohs hardness of higher than 6.

To reduce the risk of injury:

Read the Spyder Hole Saw RPM Chart for the recommended operating speed for the saw size and the material being cut.
Use the proper pilot bit and hole saw for your material. Only drill materials that are listed on the product label.
Use a drill motor that is equipped with a support handle.
Start cutting with a light forward pressure. For cuts that are square to the surface, start the cutting process with the saw square to the material being cutso all teeth begin to cut at the same time. This will help prevent premature wear and damage to the saw. Feeding the saw in and out or using a slight circular rocking motion may assist in clearing material shavings from the hole being cut. When sawing in wood, finish the hole from the opposite side to prevent splintering. Once the pilot bit has broken through the other side, you can use this hole to guarantee you are in line with where you have already started cutting.

5-1/4" Deep Cut Tungsten Carbide Tipped Hole Saw

Product Details

Why Choose Spyder

Up to 10x more cuts than standard bi-metal hole saws

6-1/4-In depth of cut

Drill wood, fiber cement board, porous concrete block, brick, ceramic wall tile, plastic/PVC and more

Universal 5/8-18 thread uses Spyder Hex11 arbor/pilot bits

Tungsten carbide tipped for extended life, clean cuts and extreme material drilling versatility

Always use a drill motor with a support handle

Not for use on metal, wood with nails, or in block/brick/tile applications with a Mohs hardness of 6 or greater

Not for use in hammer mode

Safety Instructions & Warnings

To reduce the risk of injury:

Use personal protective equipment. Always wear eye protection.

WARNING:

Do not use near flammable materials or gases!

Before each use:

Use a pilot bit which is correctly sized for the hole saw being used.

WARNING: Hole saws are not to be used in hammer or impact mode!

To reduce the risk of injury:
